Although we’re mainly focused on the newer engine platforms, we still get plenty of requests for LS options. With C5/C6 Corvettes, F-bodies, and NBS/NNBS trucks now over 20 years old, it’s time to start considering these as true modern classics.
While we can always drop in a Gen V swap, some guys just want something simple — an engine they can drop in with minimal wiring and get right to driving. For those who still love the LS platform or are looking to upgrade their existing swap, we’ve got something new for you.
Meet the LS.R.

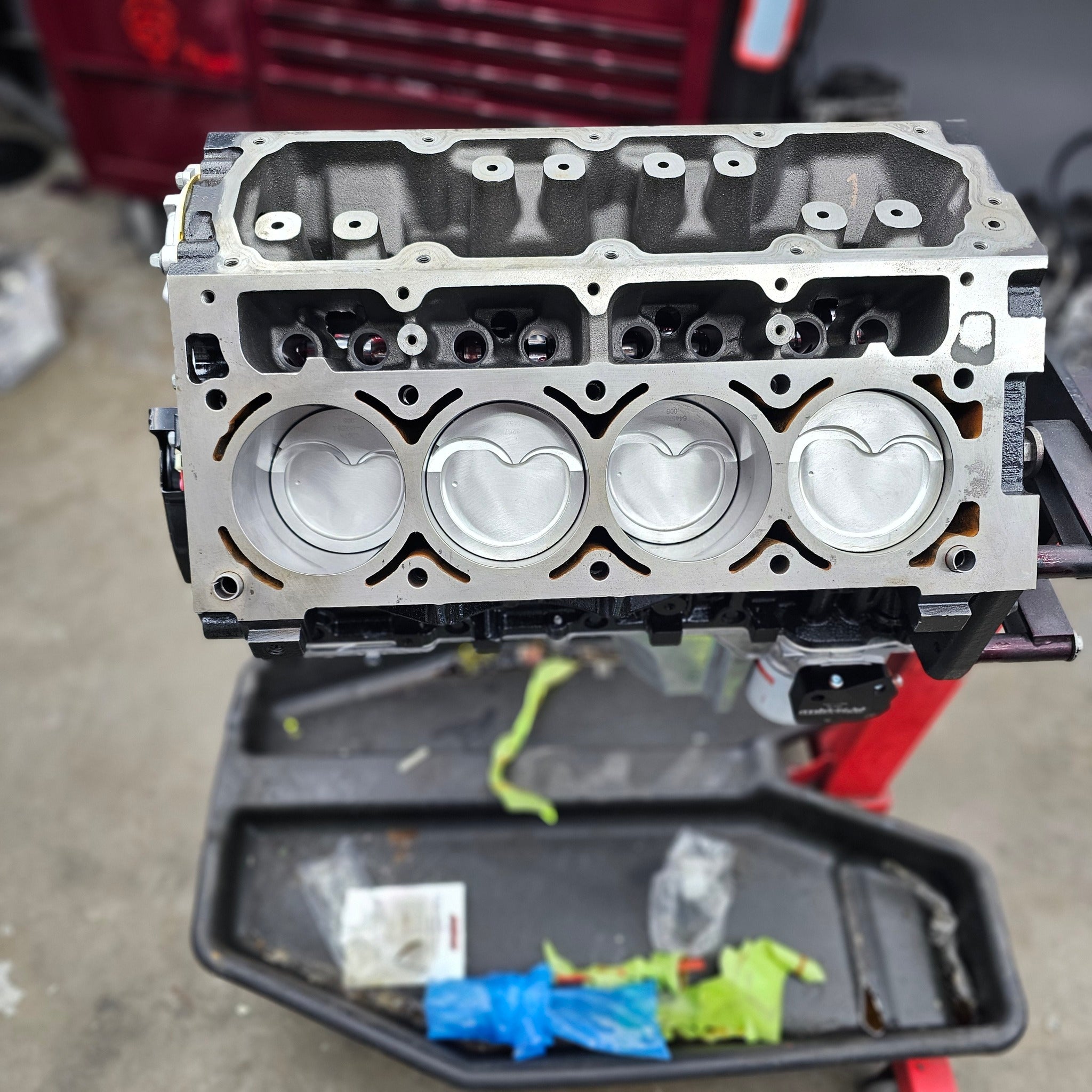

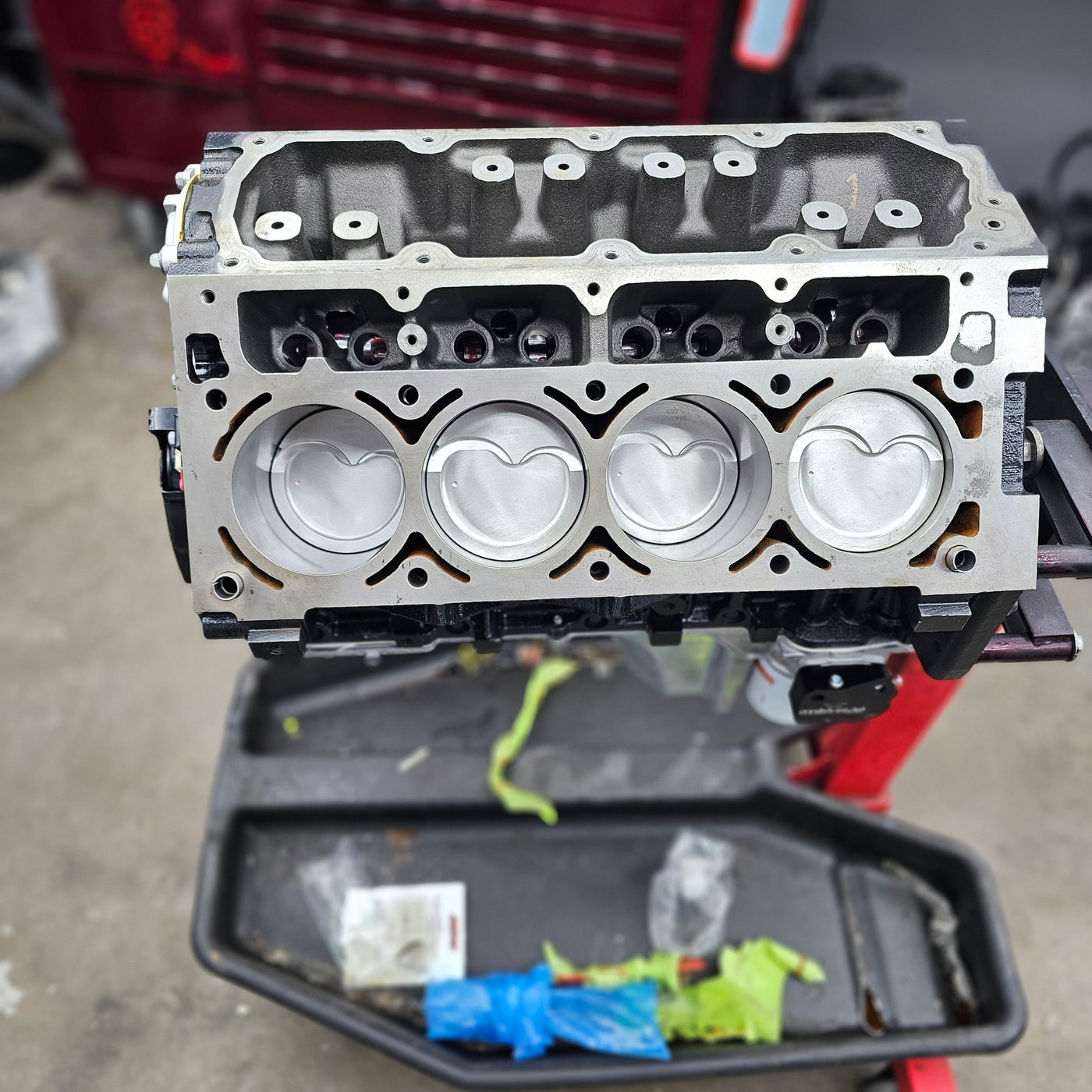

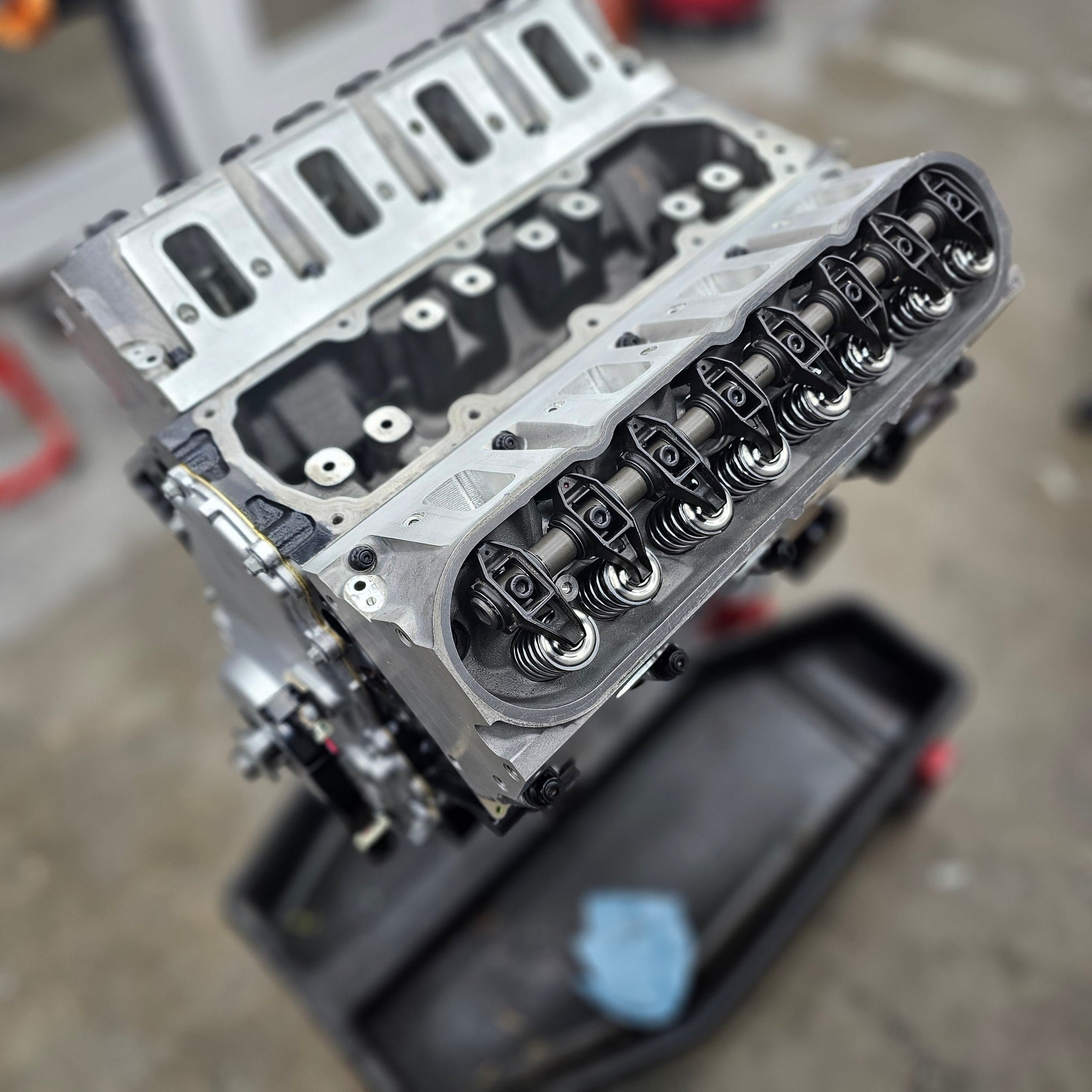

At the heart of this setup is a Gen 4 6.0L iron block featuring a Callies 8ccw crank, Carillo Boostline rods, and custom Wiseco pistons — all coming together to make a snappy 400 cubic-inch combo.
Sure, 408s, 427s, and 4xx builds sound cool, but we’ve had incredible success with our “little” 400ci boost-loving monster. This engine easily makes 1,000 horsepower, which is plenty for most builds — and if you want more, we’ve got options for that too.
Here’s the best part — we’ve locked in a solid connection for 4L80 transmissions, but we’re also equipped to pair the LS.R with the 10-speed automatic, yes, even for your NBS, NNBS, or F-body.
Engine Includes:
- Gen 4 Iron Block
- Callies Compstar 8CCW Crank
- Carrillo Bullet Connecting Rods
- Custom Pistons
- ARP Main Studs

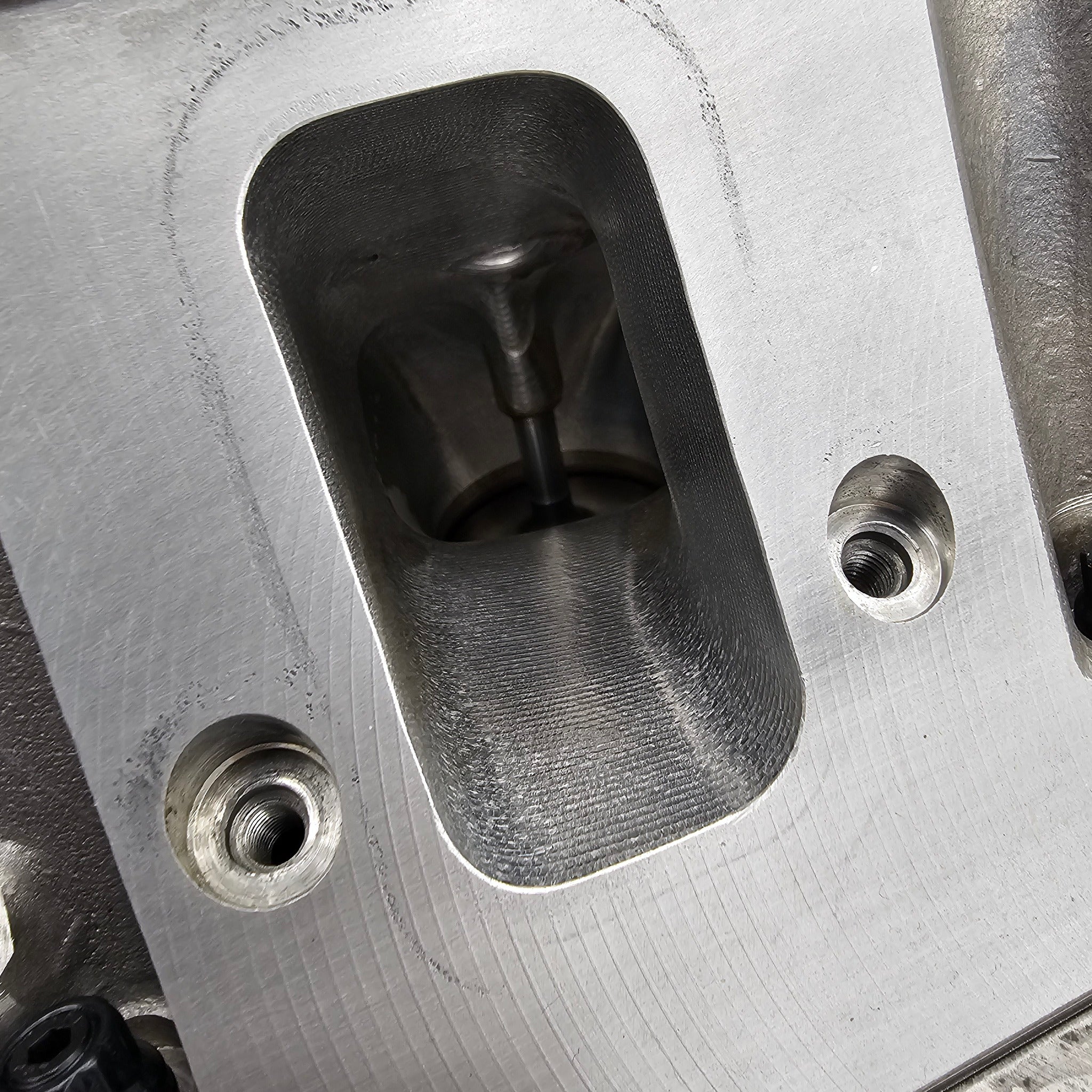

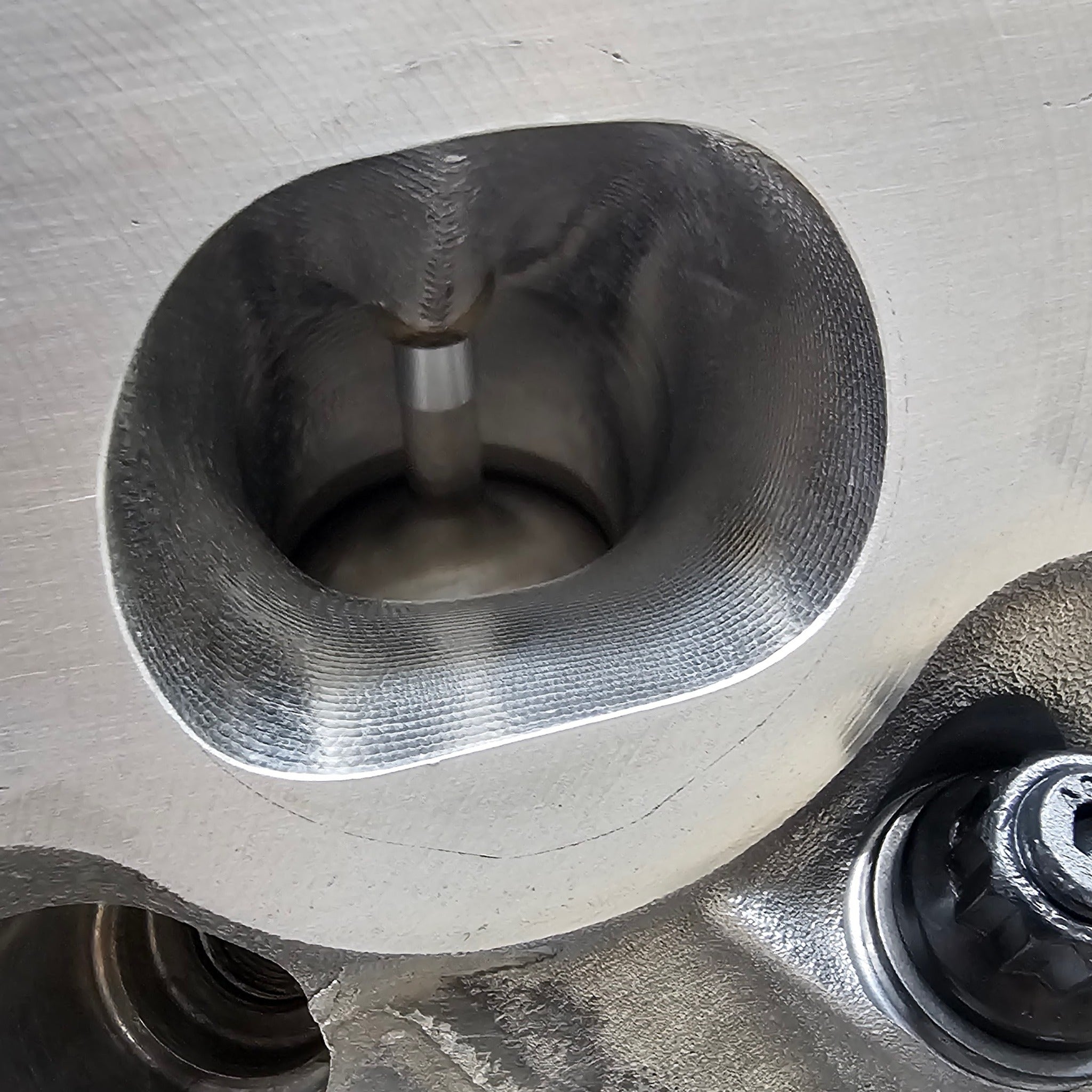

- Ported LS3 Heads

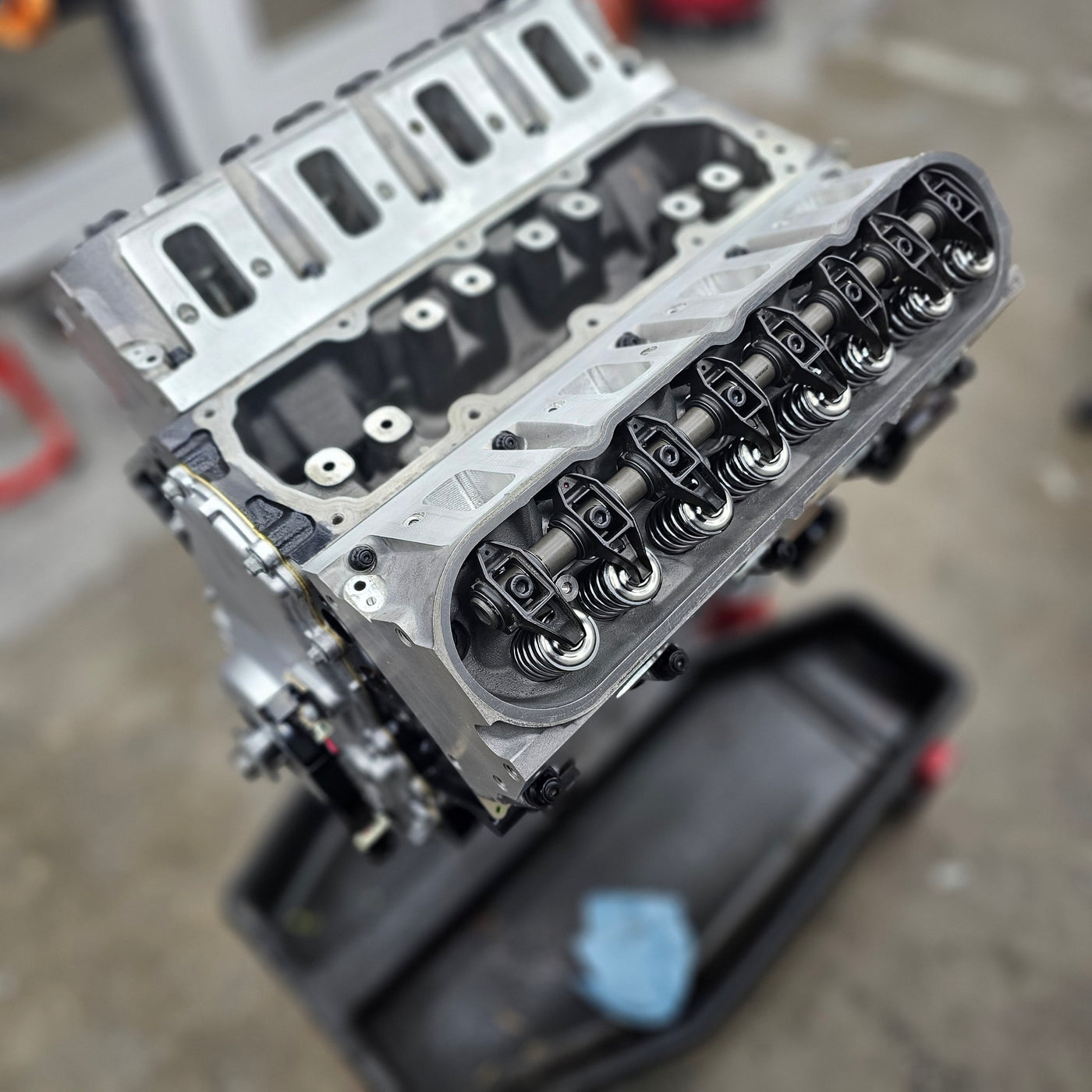

- Comp BSR Shaft Rockers
- GM Race Lifters
- ARP Head Studs
- ESS Red Valve Covers
- Coil packs
- NGK Spark Plugs
- Spark Plug Wires
- Oil pan
- 4 Point Steam port vent
- all Sensors
Harrop Supercharged Options:
- Harrop 2650
- Harrop Lid
- 103mm throttle body

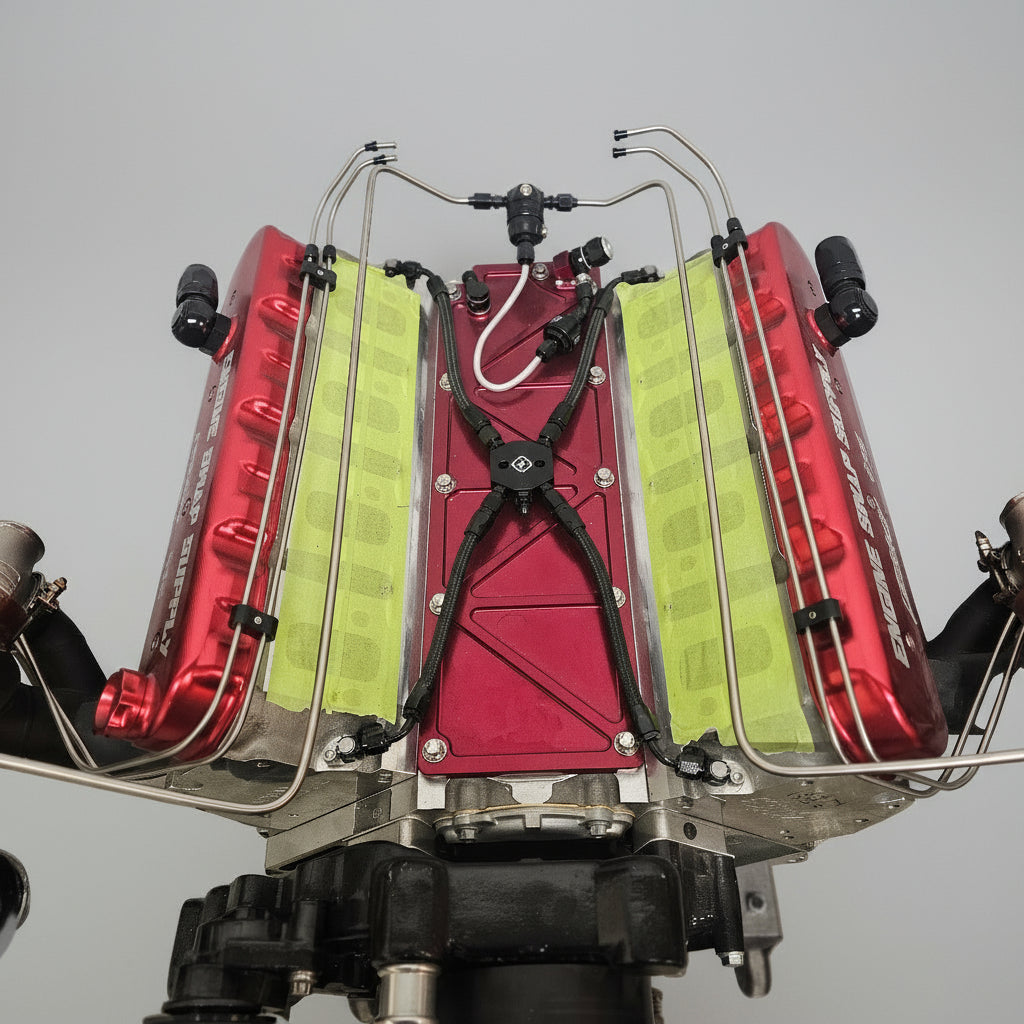

- Fuel Rails
- Complete Front accessory Drive
- ID1300 Injectors
- Universal Heat exchanger

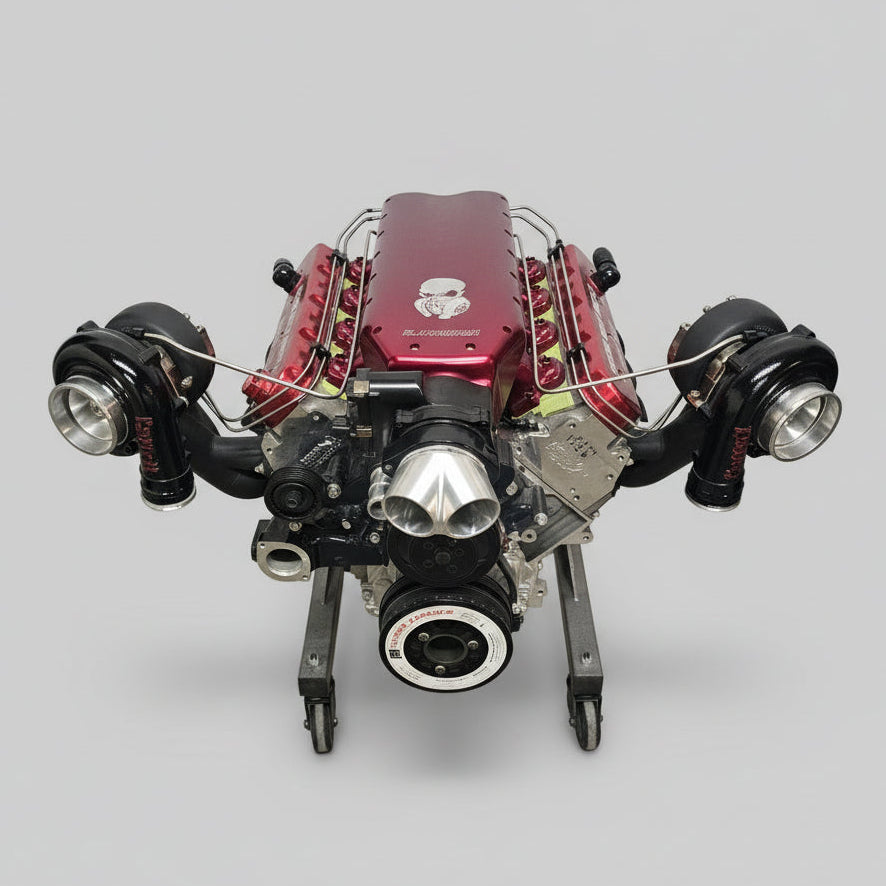

Twin Turbo Option:
- ESS Twin Turbo mirrored manifolds
- HPT / Turbosmart Mirror 62mm Turbos
- Turbo oil pressure regulator & Filters
- Turbosmart Wastegates
- Plumbed oil feed & return lines
- plumbed Vacuum Line Wastegate Controlled only
- Complete Accessory Drive

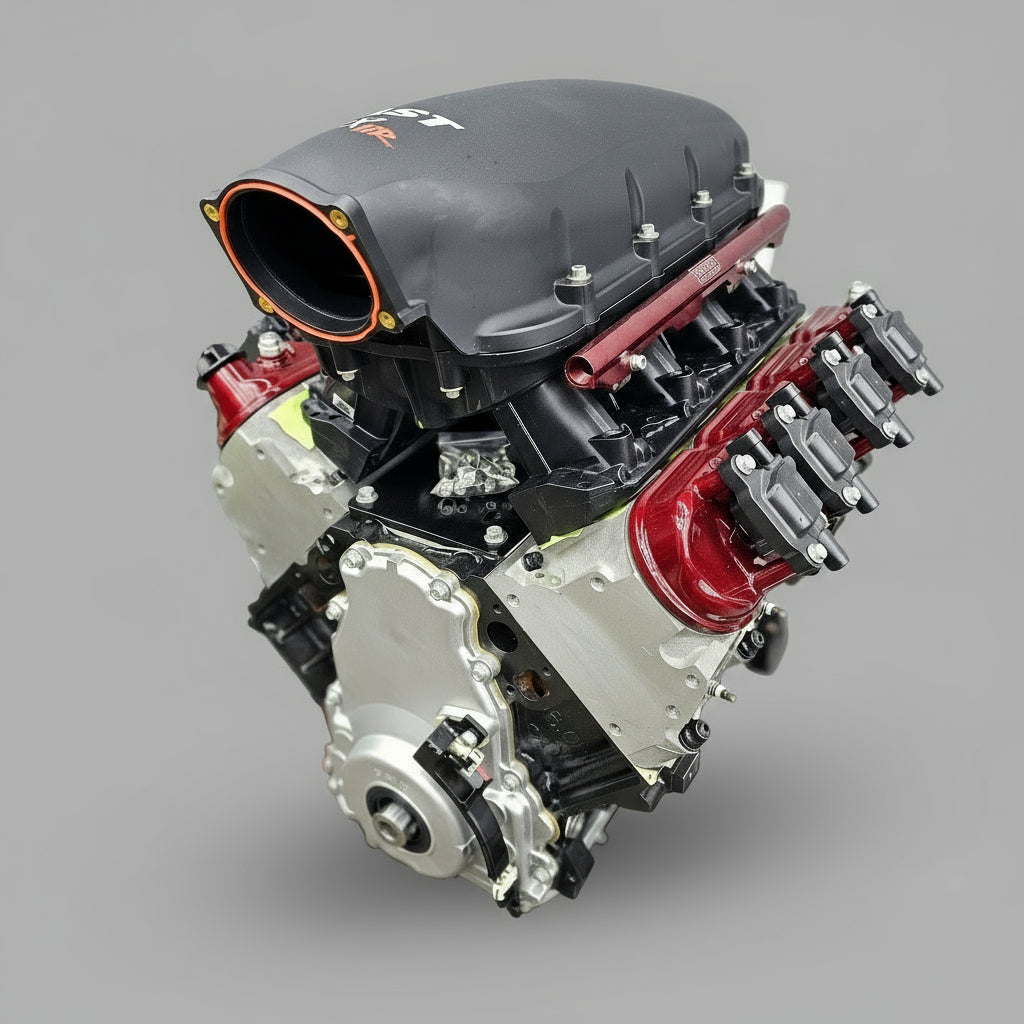

- Fast LSXhr Intake Manifold (Upgradable to Billet Boost Reaper PLazmaman)
- 103mm throttle body
- Upgradeable Boost Control option includes Electronic Wastegates, Black Box, Eboost 3 controller.
Transmission Options:
- 10l80 transmission 2wd or 4wd
- T56 magnum with dual clutch
- FTI 4l80e
